2000x1200x1800mm Fully Automatic Screen Printing Machine

Name: 2000x1200x1800mm Fully Automatic Screen Printing Machine
Brand: HONGYU
Price: 1 USD

Buy cheap 2000x1200x1800mm Fully Automatic Screen Printing Machine product

Brand Name : HONGYU

Model Number : HY-601UV

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30 set

Delivery Time : 15 work day

Packaging Details : wooden case

automatic grade : automatic

color : singel color

condition : new

usage : label printer

weight : 1000kg

dimension : 2000*1200*1800MM

voltage : 380v

type : screen printer

Contact Now

cone shape bottles automatic silk screen printing machine

HY601UV Automatic Glass Plastic Bottle Silk Screen Printing Machine with UV curing device is widely used in high-precision printing of surface patterns and characters of packaging containers for daily necessities, medicines, foods, etc., electronic devices, toys, tools, etc. It can meet the circular arc surface printing requirements of cylindrical, oval cylindrical and other special-shaped containers, and is compatible with containers made of plastic, glass, metal and other materials. This machine realizes the intelligent operation of the whole machine through programmable controller (PLC) and advanced touch screen. A new transmission system is composed of advanced imported motors, transmissions and pneumatic components to achieve control functions such as stepless speed change, synchronous transmission, automatic registration, and no printing without bottles.

Product Paramenters

Printing diameter: ф25mm ~ ф108mm	Printing height: 25mm ~ 280mm
Flat printing diameter: R25mm ~ R180mm	Rated power: 37.5kw
Flat printing height: 30mm ~ 280mm	Air pressure requirement: 5 ~ 7bar
The fastest printing speed: 3600Pcs / Hour	Machine size: (L2000mm × W1200mm × H1750mm)
Power requirements: AC220V1Phase / AC380V 3Phase 50Hz / 60Hz	Mechanical weight: 1000kgs

2000x1200x1800mm Fully Automatic Screen Printing Machine

The main function

Automatic material sorting mode available Automatic U-turn function Flame surface treatment system Variable frequency control system Automatic pre-alignment system No bottle and no printing system UV curing system

Main configuration:

Machine main reducer: motovario Programmable controller: omron(Japan)Photoelectric switch:
omron (Japan Omron) Touch screen: omron Button switch: NHD (Taiwan)
Contactor: schneider ( France)
Relay: omron (Japan) Inverter: omron (Japan) UV curing system: honovia ( USA) Pneumatic components: smc (Japan)

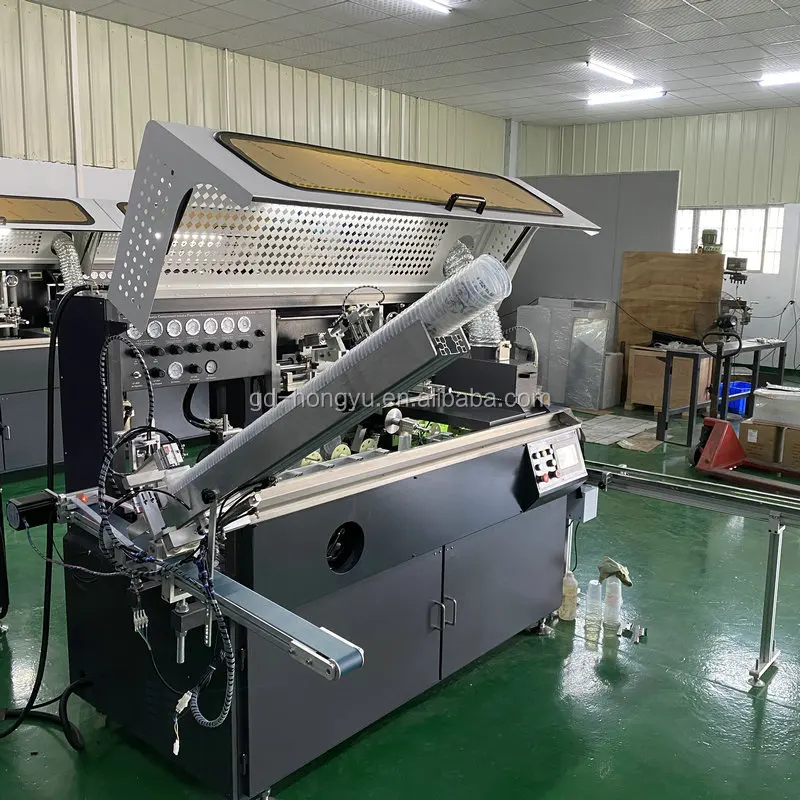

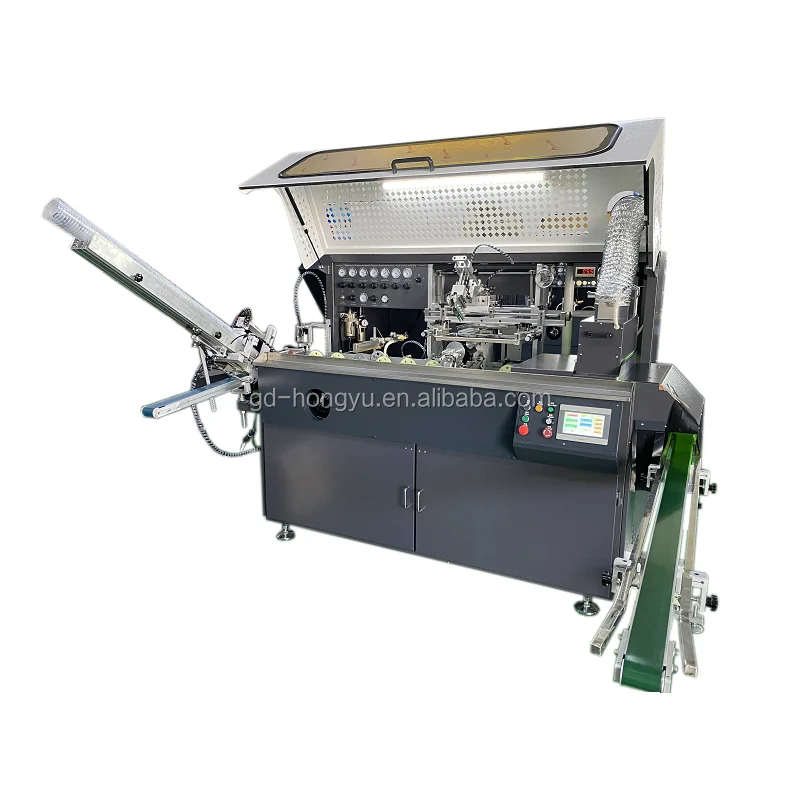

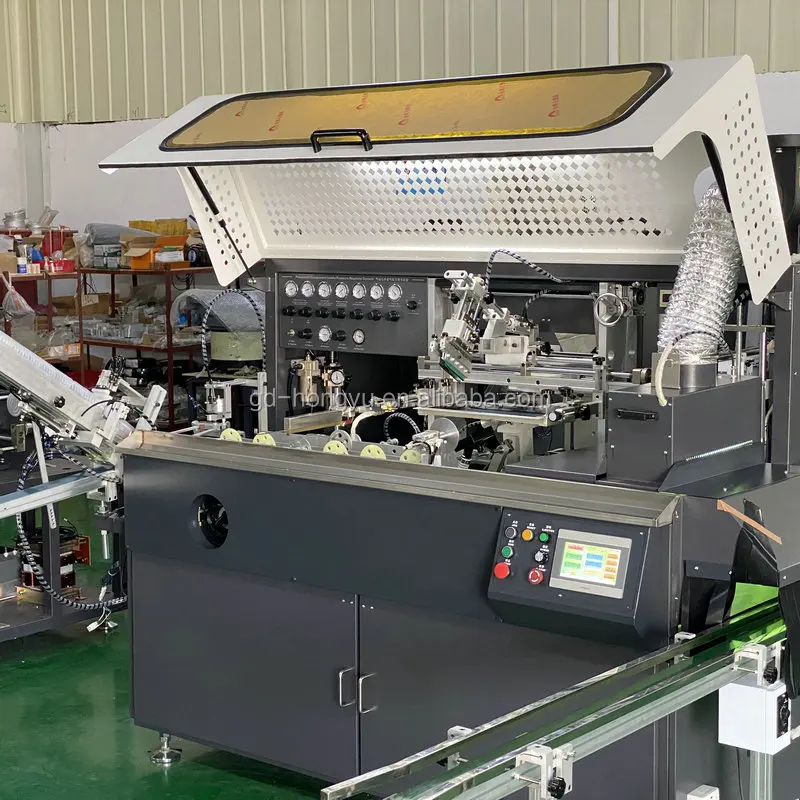

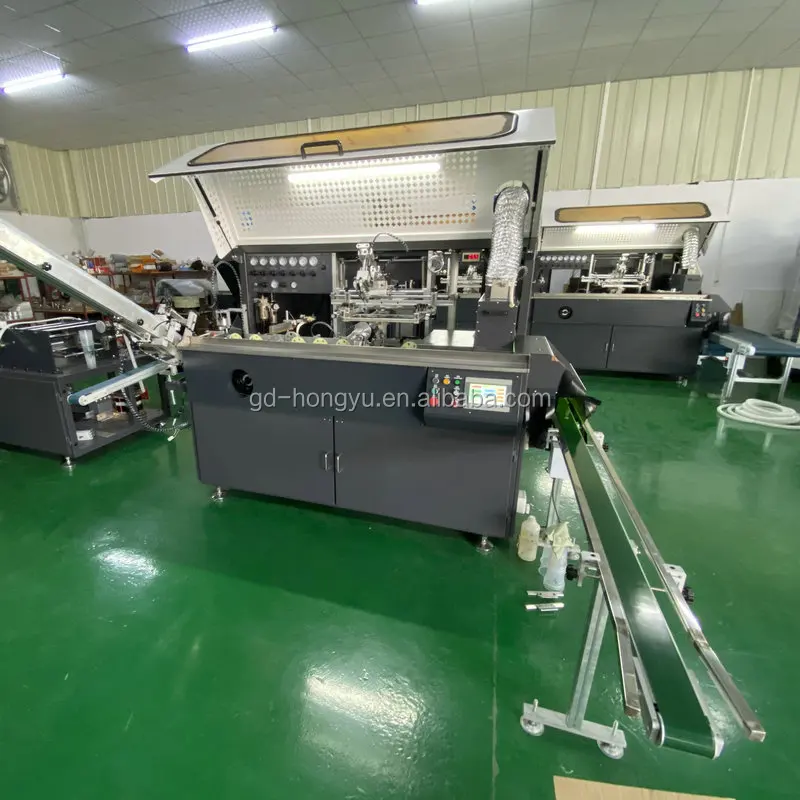

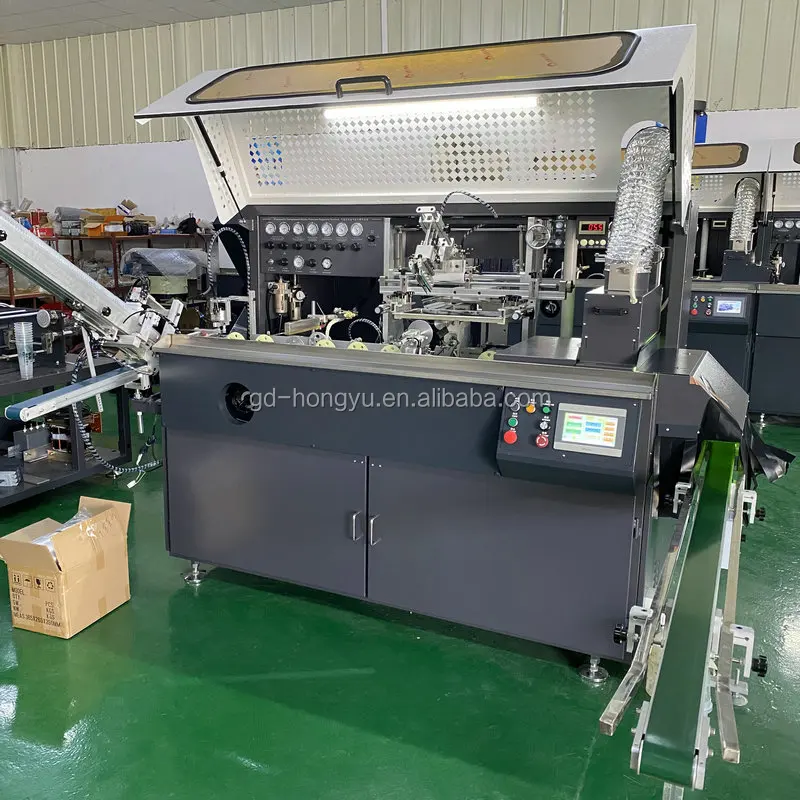

Detailed Images

Printed samples
